What ASTM standards apply to cast stone columns?

Cast stone columns are manufactured to ASTM C1364 (Architectural Cast Stone), requiring a minimum compressive strength of 6,500 psi and maximum water absorption of 6%. GFRC column wraps and pilaster profiles are tested per ASTM C947. All structural applications are engineered per project-specific IBC load requirements.

Can cast stone columns be structural or load-bearing?

Cast stone columns are typically applied as architectural cladding over a structural steel or concrete core, not as primary structural members. Mesa Precast engineers column wrap systems designed to work with steel pipe, concrete-filled tube (CFT), or timber post cores. Structural engineering and connection design are the responsibility of the project structural engineer of record.

What classical column orders are available in cast stone?

Mesa Precast produces columns in all five classical orders: Tuscan, Doric, Ionic, Corinthian, and Composite. Standard profiles include shaft sections, base caps, and entablature components. Custom capitals, fluted shafts, and entasis (tapered shaft profiles) are available via shop drawings. Modern smooth-shaft and square pilaster profiles are also available.

How are cast stone column sections shipped and installed?

Column shafts are manufactured in stackable drum sections for field assembly over a structural core. Each section includes setting hardware and alignment guides. Bases and capitals ship as separate units. Mesa Precast provides full installation drawings and, for large projects, on-site technical support during installation.

How does cast stone compare to fiberglass columns in cost?

Cast stone columns run $180–650 per linear foot installed versus fiberglass at $80–250/LF. Cast stone delivers a genuine stone appearance and feel, 50+ year lifecycle, and superior fire resistance compared to fiberglass, which requires periodic repainting and has a 20–30 year service life.

What ASTM standards apply to cast stone columns and pilasters?

Cast stone columns and pilasters are manufactured to ASTM C1364 (Architectural Cast Stone), requiring 6,500 psi minimum compressive strength and maximum 6% water absorption (ASTM C642). GFRC column shaft covers follow ASTM C947 and PCI MNL-128. All products meet ASTM C666 freeze-thaw requirements at 300+ cycles.

What are the available column configurations from Mesa Precast?

Mesa Precast offers full-round columns, half-round (engaged) columns, and pilasters in both cast stone and GFRC. Standard heights range from 8 to 20 feet. Options include smooth shaft, fluted shaft, and entasis (tapered) profiles. Capitals and bases are available in Doric, Ionic, Corinthian, and custom styles.

What is the dimensional tolerance for cast stone columns?

Dimensional tolerances for cast stone columns per ASTM C1364 are plus or minus 1/8 inch on face dimensions. Installed tolerances are plus or minus 1/4 inch in 10 feet for plumb and level. All tolerances per ASTM C1364 and PCI MNL-117.

How are cast stone columns anchored and installed?

Cast stone column sections are set in mortar beds with stainless steel pin anchors at each joint. Columns over 10 feet require engineered anchor designs. Sealant joints per Section 07 92 00 at base and capital interfaces. GFRC shaft covers are mechanically fastened to structural columns with stainless steel hardware.

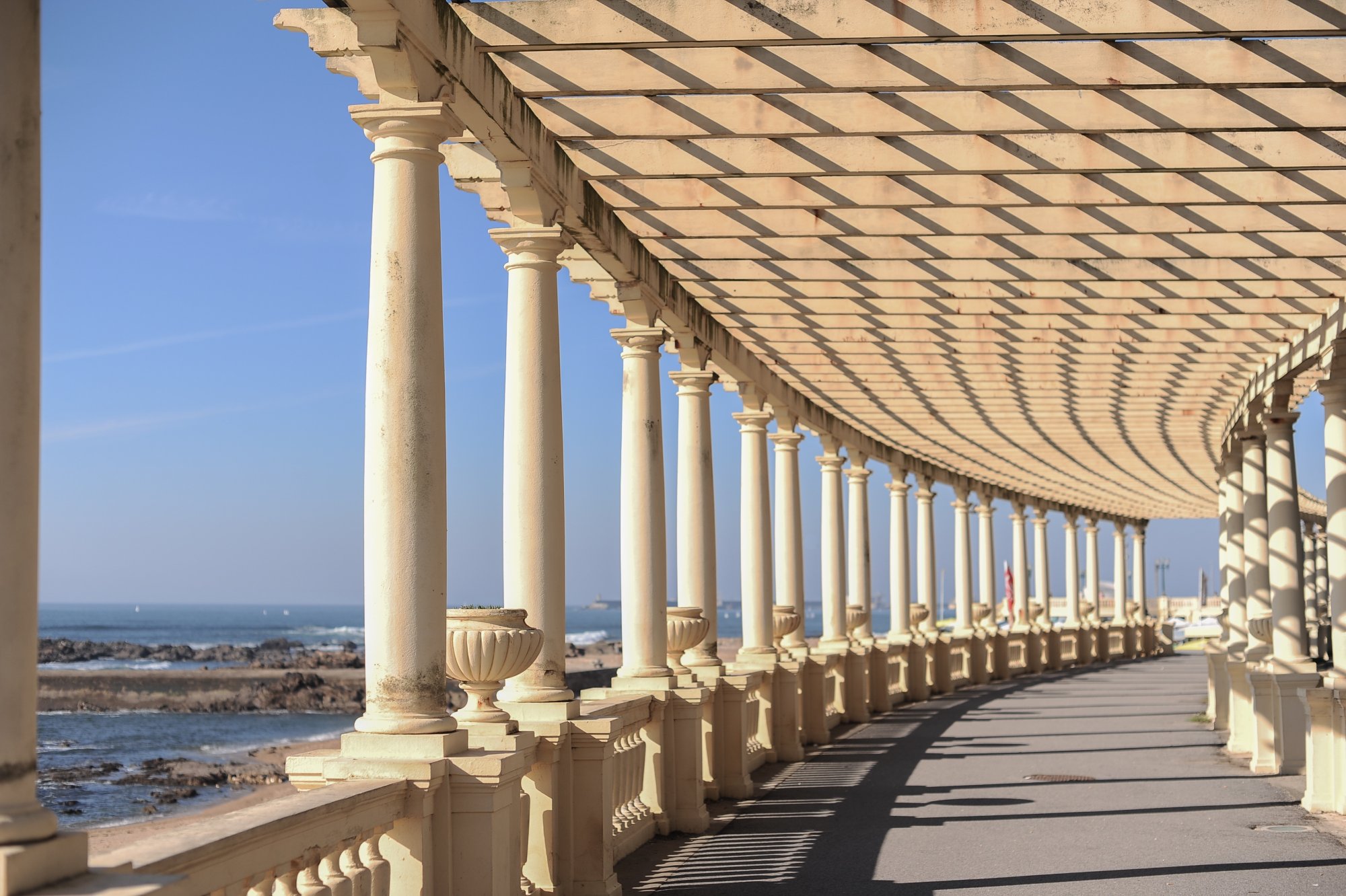

Coastal colonnade with cast stone columns and pergola — architectural columns and pilasters

CSI MasterFormat 04 72 00 • Live

Columns & Pilasters

Name: Cast Stone Columns & Pilasters
Brand: Mesa Precast
Availability: InStock

Precision-engineered cast stone and GFRC column systems for residential porticos, commercial colonnades, and institutional facades. Classical and modern profiles. Non-combustible, UV stable, and built to last 50+ years.

Standards

ASTM C1364 / C947

Compressive Strength

6,500+ psi

Durability

50+ Years

Column Orders

5 Classical

Free Estimator Available

Get a Free Project Estimate

Instant material pricing for your specs. No signup required.

Get Free Estimate → (480) 600-6776

CSI 04 72 00 Cast Stone Masonry — Columns & Pilasters ASTM C1364 Architectural Cast Stone ASTM C947 GFRC Flexural Properties

Technical Standards

Governing ASTM Standards

All Mesa Precast column and pilaster systems are manufactured and tested to current ASTM standards. Compliance documentation, test reports, and mill certifications available on request.

ASTM C1364

Architectural Cast Stone

The primary standard for cast stone column shafts, bases, and capitals. Requires minimum 6,500 psi compressive strength and maximum 6% water absorption. All Mesa Precast column units are tested per C1364 for dimensional tolerances (±1/8"), finish uniformity, and color consistency batch-to-batch.

6,500

Min. psi

<6%

Max. Absorption

ASTM C947

GFRC Flexural Properties

Standard test method for flexural properties of thin-section glass-fiber-reinforced concrete. Applies to GFRC column wraps, pilaster faces, and engaged column elements where lightweight, large-format construction is required. Minimum 5% alkali-resistant glass fiber content, tested in-process.

Min. Glass Fiber

3/4"

Min. Face Mix

ASTM C1194

Compressive Strength

Standard test method for compressive strength of architectural cast stone. Mesa Precast tests each production batch from a minimum of three specimens. Column drum sections for structural cladding applications are tested at 28-day cure to verify design strength compliance. Results logged per project and available in closeout documentation.

28-day

Test Cure

3 min.

Specimens

Product Applications

Applications & Configurations

From residential entry porticos to commercial colonnades and institutional pilaster systems — cast stone and GFRC column systems engineered for every application. All products manufactured to ASTM C1364.

Residential

Residential Porticos & Entries

Cast stone column systems for front porticos, covered entries, and porch colonnades. Classical Tuscan, Doric, and Ionic profiles with matching bases and capitals. Integral-color finish matches existing façade masonry permanently — no painting or staining required.

Tuscan, Doric, Ionic, Corinthian, and Composite orders
Smooth and fluted shaft profiles
Matching base and capital components
Custom entasis (tapered shaft) profiles available
Color-matched to existing façade stone

Commercial

Commercial & Institutional Colonnades

Large-diameter cast stone and GFRC column wrap systems for hotel porte-cocheres, civic buildings, retail centers, and institutional facades. Engineered column wraps for steel pipe and concrete-filled tube (CFT) cores. High-volume production programs for multi-phase commercial developments.

Column wrap systems for structural steel cores
Large-diameter shafts up to 36" diameter
GFRC lightweight wraps for high-rise applications
Consistent color across multi-phase projects
Shop drawings and installation support included

Cast stone commercial colonnade on institutional building facade

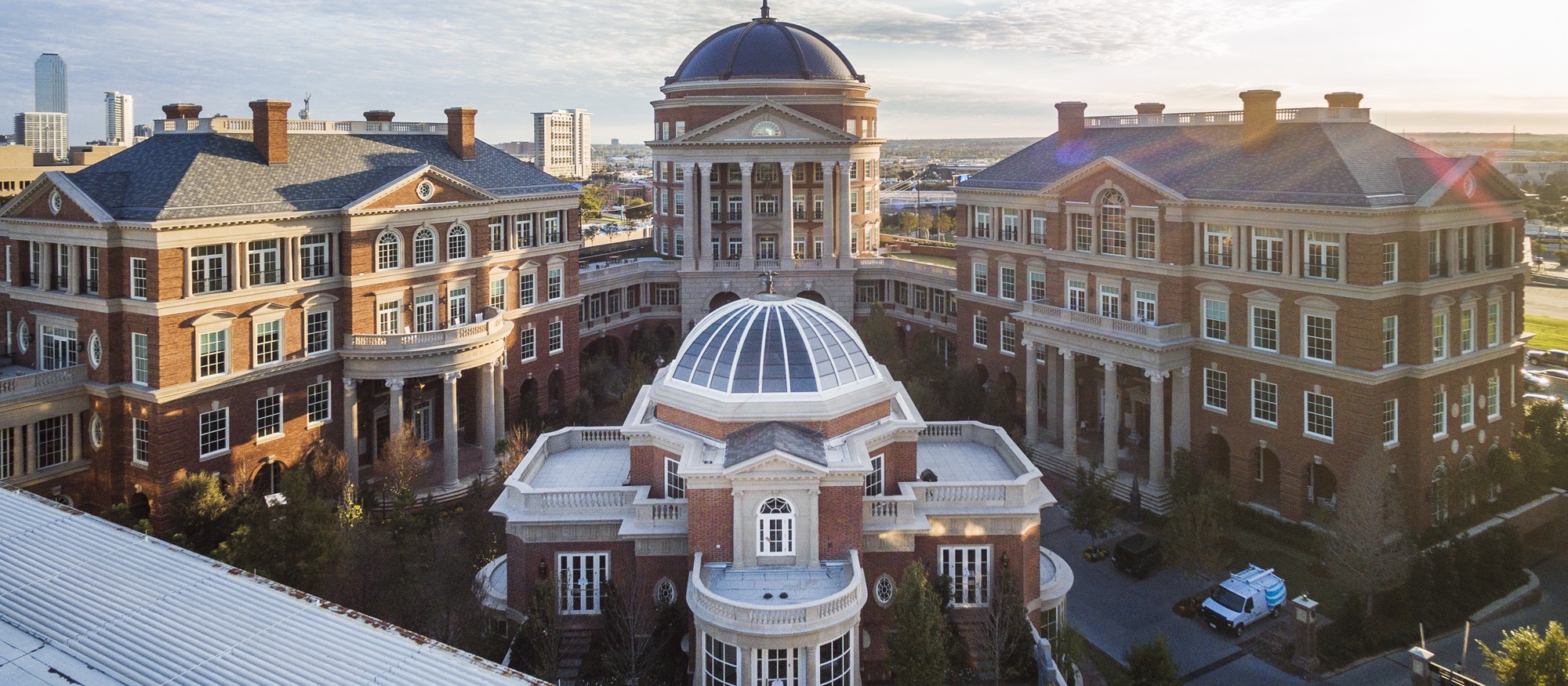

Cast stone pilasters and engaged columns on classical brick facade

Pilasters & Engaged

Pilasters & Engaged Columns

Cast stone pilasters and engaged (half-round) column systems for brick and masonry facades. Applied architectural detail that adds depth, rhythm, and classical proportion to wall planes. Available in flat, round-profile, and fluted configurations. Coordinated with window surrounds, entablature, and cornice systems.

Flat and round-profile pilaster options
Fluted and smooth shaft options
Coordinated capital and base profiles
Bond-beam integration for masonry backup
Pairs with window surrounds and cornice systems

Built for a 50+ Year Lifecycle

Cast stone columns are engineered for long-term exterior exposure with near-zero maintenance. ASTM C1364 requires 6,500+ psi compressive strength and <6% water absorption. Non-combustible, UV stable, and immune to rot, insect damage, and delamination — unlike fiberglass and wood columns that require periodic repainting and replacement.

6,500+

psi Strength

50+

Year Lifecycle

Classical Orders

Economic Comparison

Cast Stone vs. Alternative Column Materials

Cast stone columns deliver natural stone aesthetics at a fraction of natural stone cost, with 2× the lifespan of fiberglass and zero annual maintenance.

Material	Cost / LF	Lifespan	Maintenance
■ Cast Stone	$180–650	50+ years	Near zero
■ Natural Stone	$400–1,200	50+ years	Low
Precast Concrete	$120–400	40–50 years	Low – Moderate
Fiberglass (FRP)	$80–250	20–30 years	Moderate (repainting)
Wood (painted)	$60–180	10–15 years	High (annual)

✓ Cast stone columns typically cost 40–60% less than natural stone, with 2× the lifespan of fiberglass and zero annual paint or maintenance costs.

Need exact pricing for your project?

Our free estimator gives you material pricing in seconds. For custom configurations, our team responds within 1 business day.

Try Free Estimator →

Material Selection Guide

Precast Concrete vs. Cast Stone vs. GFRC

Three material options for column and pilaster systems. Cast stone for classical profiles; GFRC for lightweight large-diameter shafts; precast for structural applications.

Criteria	Precast Concrete	Cast Stone (ASTM C1364)	GFRC (ASTM C947)
Compressive Strength	5,000 psi min.	6,500 psi min.	4,000 psi face mix
Water Absorption	<8% (ASTM C642)	<6% (ASTM C642)	<10% face mix
Freeze-Thaw	300 cycles (ASTM C666)	300 cycles (ASTM C666)	300 cycles (ASTM C666)
Weight	130–145 pcf	130–145 pcf	18–25 pcf (75–80% lighter)
Profile Options	Round and square shafts	Full classical order: Doric, Ionic, Corinthian	Large-diameter shaft covers
Advantages	Structural load capacity	Natural stone appearance; classical detail	Lightweight; large-diameter; fast install
Limitations	Limited profile detail	Heavier than GFRC	Higher cost per unit for small runs
CSI Reference	Section 03 41 00	Section 04 72 00	Section 03 49 00

✓ All materials meet ASTM C666 (300 cycles). Tolerances: ±1/8" per ASTM C1364, ±1/4" in 10 feet. Stainless steel anchors, sealant per Section 07 92 00.

Finish & Color Options

Standard Finishes

Four integral-color finishes, consistent batch-to-batch. Custom color matching available on request. All finishes are applied during manufacturing and are permanent — no painting or sealing required.

LS-01

Limestone

Classic warm-white tone. Complements traditional brick and light stone façades.

SS-02

Sandstone

Warm tan. Pairs naturally with red brick, aged limestone, and earth-tone masonry.

TV-03

Travertine

Rich veined buff. Ideal for Mediterranean, Italian, and Spanish Revival styles.

CM-04

Cream Marble

Warm cream with subtle veining. High-end residential and hospitality applications.

Specification Language

CSI MasterFormat Spec Language

Copy-paste ready specification language for project manuals. Formatted for CSI MasterFormat 04 72 00. Available in plain text, Word, and Excel BIM formats.

Section 04 72 00 — Cast Stone Masonry: Columns & Pilasters

CSI MasterFormat 2020 • Division 04 • Masonry

SECTION 04 72 00 – CAST STONE MASONRY Columns & Pilasters PART 1 – GENERAL 1.1 SUMMARY A. Cast stone and glass fiber reinforced concrete (GFRC) architectural column and pilaster units as indicated on Drawings. 1.2 REFERENCES A. ASTM C1364 – Standard Specification for Architectural Cast Stone B. ASTM C947 – Standard Test Method for Flexural Properties of Thin-Section GFRC C. ASTM C1194 – Standard Test Method for Compressive Strength of Architectural Cast Stone D. ASTM C150 – Portland Cement E. ASTM C33 – Concrete Aggregates 1.3 SUBMITTALS A. Product data sheets, mix design, aggregate gradation, and finish samples. B. Shop drawings: column layout, joint patterns, connection details, section cuts. C. Test reports per ASTM C1364: compressive strength, absorption, and color per batch. PART 2 – PRODUCTS 2.1 CAST STONE UNITS A. Compressive strength: 6,500 psi minimum at 28 days per ASTM C1194. B. Water absorption: 6% maximum per ASTM C1364. C. Dimensional tolerance: ±1/8 inch on face dimensions. D. Color and texture: integral; uniform within 10% reflectance variation batch-to-batch. 2.2 GFRC UNITS A. Glass fiber: minimum 5% by weight, alkali-resistant (AR) type. B. Face mix: minimum 3/4 inch, matched to cast stone finish. C. Test per ASTM C947 for flexural strength and elastic modulus. 2.3 FINISH OPTIONS A. LS-01 Limestone: warm white integral color. B. SS-02 Sandstone: warm tan integral color. C. TV-03 Travertine: buff with subtle veining. D. CM-04 Cream Marble: cream with warm undertones. PART 3 – EXECUTION 3.1 INSTALLATION A. Install column drum sections over structural core per shop drawings. B. Set in full-coverage mortar bed; align with setting hardware. C. Grout joints: point-up with matching color mortar per Drawings. D. Protect installed work from soiling, staining, and impact during construction. MANUFACTURER: Mesa Precast Contact: Jess Mason, 480-600-6776 END OF SECTION 04 72 00

Word-formatted CSI spec available for download. Download includes: - Cover page with project fill-in fields - Section 04 72 00 formatted per CSI 3-part format - Fully editable DOCX - Linked to Mesa Precast product library Click "Download Word Spec" below to receive the formatted document.

BIM / Excel specification schedule available for download. Includes: - Column schedule (Unit ID, Diameter, Height, Profile, Finish, Qty) - Pilaster schedule - ASTM compliance matrix - Submittal checklist Click "Download Excel Spec" below to receive the BIM-ready schedule.

↓ Download CSI Specification (PDF)

PDF contains Mesa Precast MasterFormat 04 72 00 specification with ASTM C1364, C150, C33, C642, C666, C947, PCI MNL-117 and MNL-128 references. Contact Jess Mason at 480-600-6776 for Word (.docx) format.
