What ASTM standards apply to cast stone keystones and arches?

Cast stone keystones and arch units are manufactured to ASTM C1364 (Architectural Cast Stone), requiring minimum compressive strength of 6,500 psi and maximum water absorption of 6%. Exterior arches are also tested per ASTM C666 for freeze-thaw resistance (300+ cycles). GFRC arch panels are tested per ASTM C947 for flexural strength — critical for large-span structural arch applications.

What is the difference between a keystone and a voussoir?

Voussoirs are the individual wedge-shaped units that form an arch. The keystone is the central voussoir at the crown of the arch — typically larger, projecting, and decoratively detailed. Mesa Precast manufactures full arch sets including all voussoir units and the keystone, sized and profiled to the specific arch radius from shop drawings. Keystone designs range from plain raised blocks to carved acanthus, scrollwork, or custom figurative relief.

How do cast stone arches compare to natural stone in cost?

Cast stone keystones ($200–800/piece) and full arch sets ($1,500–6,000 per arch opening) typically run 40–60% less than natural limestone or granite equivalents ($500–2,000/piece for keystones, $4,000–15,000 per arch opening in natural stone). Cast stone matches the appearance of natural limestone while delivering consistent tolerances (±1/8") impossible in field-cut natural stone. GFRC arch panels ($300–1,200/piece) offer the lightest weight option for long spans.

What arch types does Mesa Precast manufacture?

Mesa Precast manufactures all standard arch geometries: semi-circular (Roman), segmental, Tudor (pointed), elliptical, flat (jack arch), and Moorish/horseshoe. Each arch is engineered from shop drawings specific to the opening width and spring height. Springing stones, skewbacks, and impost blocks are cast as part of the complete arch assembly. Custom profiles and radii are standard practice — no catalog limitation.

What CSI MasterFormat section covers cast stone keystones and arches?

Cast stone keystones and arch units are specified under CSI MasterFormat Section 04 72 00 — Architectural Cast Stone. GFRC arch panels may be specified under Section 03 49 00 — Glass-Fiber-Reinforced Concrete. Mesa Precast provides ready-to-use 3-part specification language in Word, Excel, and plain text formats for both sections, downloadable from this page.

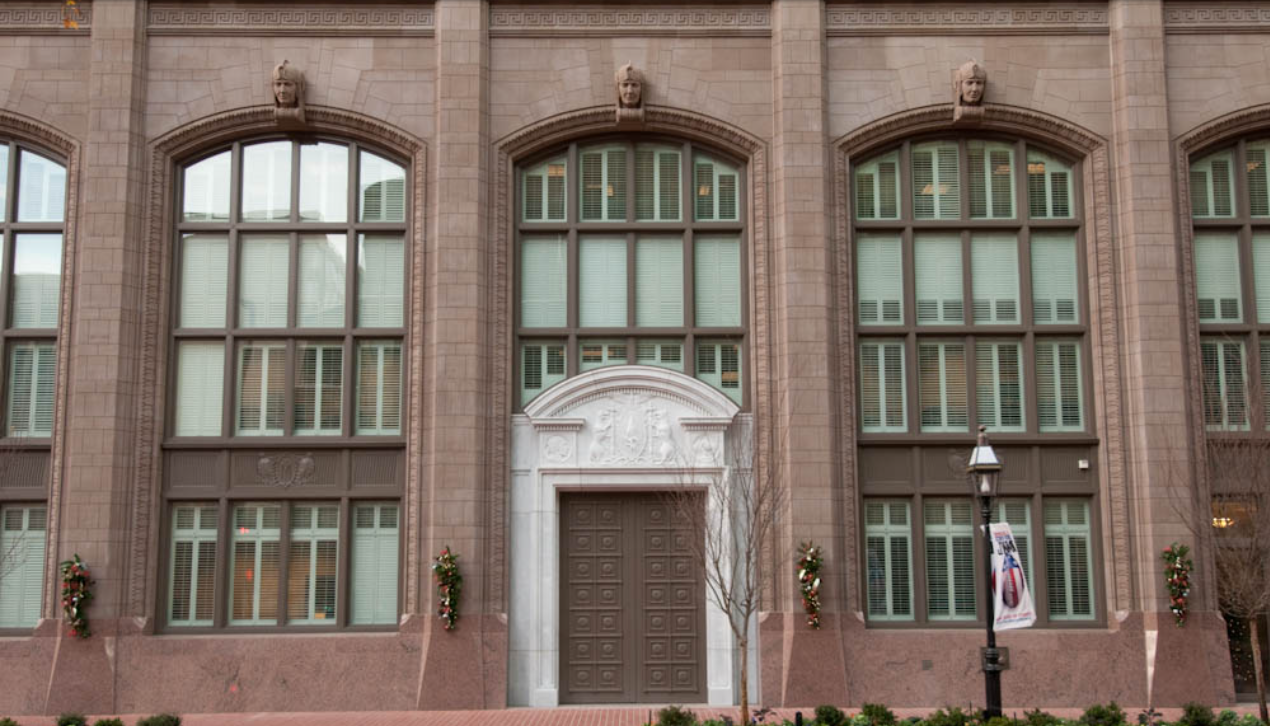

Commercial building facade featuring cast stone keystones and arched windows

Technical Specification

Keystones & Arches

Name: Cast Stone Keystones & Arches
Brand: Mesa Precast
Availability: InStock

Cast stone and GFRC keystones, voussoirs, and complete arch systems for residential entries, commercial facades, and institutional buildings. All arch geometries. ASTM C1364 certified.

ASTM Standard C1364 / C947

CSI Section 04 72 00

Cost Range $200–800/pc

Lifecycle 50+ Years

Free Estimator Available

Get a Free Project Estimate

Instant material pricing for your specs. No signup required.

Get Free Estimate → (480) 600-6776

CSI 04 72 00 Division 04 — Masonry • ASTM C1364 • ASTM C947 • ASTM C666 • Mesa Precast — Contact: Jess Mason, 480-600-6776

Standards & Compliance

ASTM Standards for Keystones & Arches

All Mesa Precast keystone and arch systems are manufactured and tested to current ASTM standards. Compliance documentation, test reports, and mill certifications available on request for every project.

ASTM C1364

Architectural Cast Stone

The primary standard governing architectural cast stone keystones, voussoirs, springing stones, and impost blocks. Requires minimum compressive strength of 6,500 psi at 28 days and maximum water absorption of 6%. All Mesa Precast arch units are tested per C1364 for dimensional tolerances (±1/8”), color consistency, and finish uniformity batch-to-batch.

ASTM C947

GFRC Flexural Strength

Standard test method for flexural properties of thin-section glass fiber reinforced concrete. Applied to GFRC arch panels and large-span keystone units where weight reduction is required. GFRC keystones and arch units tested per C947 achieve 2,000–3,000 psi modulus of rupture — critical for arches spanning over 10 feet and decorative facade arch panels on tall buildings.

ASTM C666

Freeze-Thaw Resistance

Standard test for resistance to rapid freezing and thawing. Mesa Precast keystone and arch units in exterior exposure are tested to 300+ cycles with less than 0.10% mass loss. Arch units are particularly exposed to water infiltration at the crown — freeze-thaw compliance per C666 is mandatory for all exposed exterior arch installations in climates with freeze events.

ASTM C1194

Compressive Strength

Standard test method for compressive strength of architectural cast stone. Mesa Precast tests each production batch from a minimum of three specimens at 28-day cure. Keystones and arch units bearing structural loads are tested per C1194 with results logged per project. Compressive strength certification is available for all structural arch applications.

ASTM C150

Portland Cement

Type I or Type I/II Portland cement used in all cast stone keystone and arch unit mix designs. C150 compliance ensures consistent hydration chemistry, long-term bond strength, and color stability. Critical for keystones exposed at arch crowns where moisture concentration makes long-term durability performance non-negotiable.

ASTM C33

Concrete Aggregates

All fine and coarse aggregates in Mesa Precast arch units are graded per ASTM C33. Washed limestone and marble aggregates used in exposed face mixes deliver consistent color and texture. Strict deleterious material limits prevent efflorescence on arch faces — a common failure mode in low-quality precast arch units exposed to concentrated water runoff at the crown joint.

Applications

Keystone & Arch Applications

Residential

Entry Arches, Window Keystones & Fireplace Surrounds

Residential keystones and arches define the architectural character of classical homes — Mediterranean, Spanish Colonial, Italianate, and Georgian styles all rely on arched entries and decorative keystones as primary facade elements. Mesa Precast engineers arch sets for every opening: full semi-circular entry arches, segmental window arches, flat jack arches with projecting keystones, and Tudor pointed arches for Gothic-inspired residential work.

Interior fireplace arches and surround keystones are among our most requested residential pieces. Keystone profiles range from plain raised blocks to carved acanthus heads, scrolled consoles, and fully custom sculpted relief. All residential arch units are shop-drawn with complete unit schedules, anchor details, and color callouts before fabrication.

Entry arch sets Window keystones Fireplace surrounds Jack arches Decorative keystones

Residential arched entry with cast stone keystone and voussoir arch units

Commercial

Building Entrances, Lobby Arches & Facade Accents

Commercial keystones and arches frame building identities — the main entrance arch is typically the highest-visibility architectural element on a commercial facade. Mesa Precast produces monumental arch sets for hotel entrances, office building lobbies, retail streetfronts, and mixed-use podiums. Arch spans from 4 feet to 20+ feet are within standard production scope; structural GFRC is used for the largest spans.

Facade accent keystones — projecting keystone blocks above windows and door openings without full voussoir arch sets — provide classical detail at lower cost. Mesa Precast produces these as single-piece units with integral anchor slots sized to specific window schedules. Consistent color and profile across all units in a facade is guaranteed through batch-controlled production.

Monumental arches Hotel entrance arches Lobby arch sets Facade keystones Window head accents

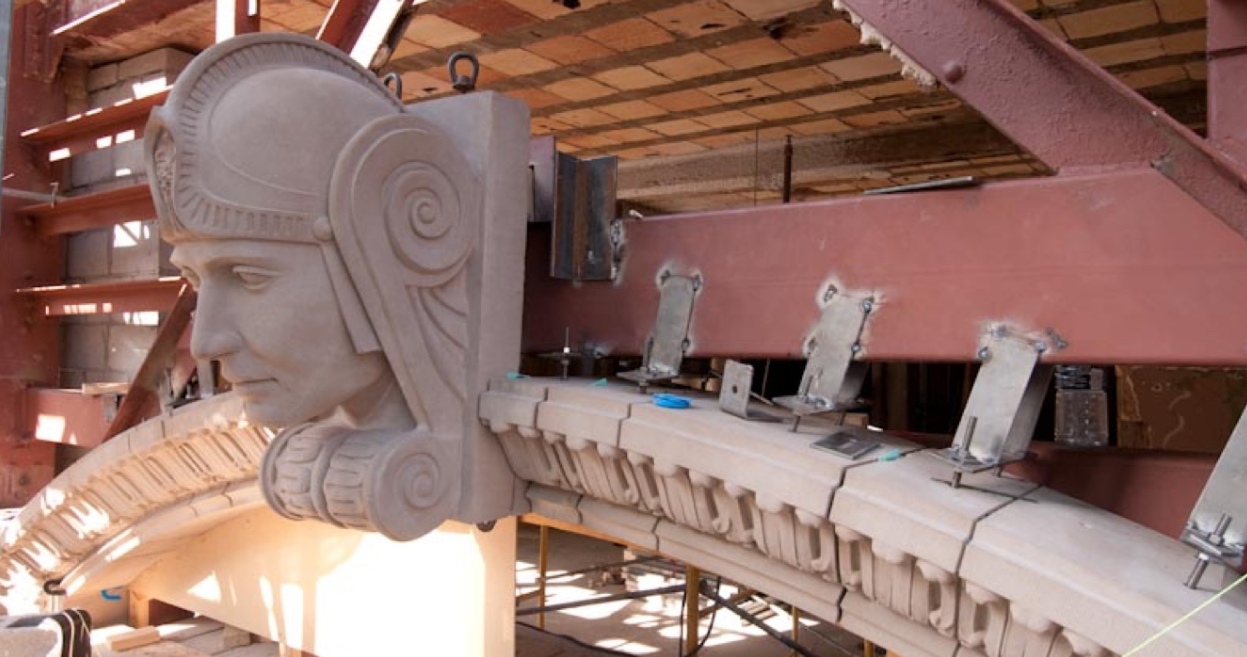

Cast stone keystone bust during installation on commercial facade

Institutional

University Buildings, Church Arches & Government Facades

Institutional buildings demand the most rigorous arch and keystone specifications — universities, churches, courthouses, and civic buildings are built to century-plus lifecycles and require materials that perform and look correct for the life of the building. Mesa Precast institutional arch systems are specified with full ASTM test documentation, shop drawing approval, mock-up fabrication, and field installation supervision available.

Church arch sets — including Gothic pointed arches for clerestory windows, nave entries, and bell tower openings — are a Mesa Precast specialty. All stone units are matched to the project's mortar joint specification and can be produced to match existing historic limestone where the project involves additions to historic structures.

University building arches Church arch sets Gothic pointed arches Courthouse facades Historic match

Cast stone keystone bust detail — institutional-grade arch installation

Standard Finishes

Color & Finish Options

All Mesa Precast keystone and arch units are available in four standard surface finishes plus custom texture matching. Finish selection directly impacts the visual character of the arch — smooth finishes read as precision-cut stone, sandblasted finishes as natural quarried limestone.

SM-01

Smooth

Fine-form smooth surface. Precision appearance for classical and contemporary arches.

LS-02

Light Sandblast

Light aggregate exposure. Closest match to quarried Indiana limestone.

MS-03

Medium Sandblast

Moderate aggregate exposure with natural stone texture and visual depth.

CM-04

Custom Match

Color and texture matched to sample or specification. 4-week lead for approval.

Custom color matching available. Submit a physical sample, historic stone piece, or Munsell reference. Color match samples shipped for architect approval before production commitment. Minimum 4-week lead for custom color development.

Mesa Precast Can Match Your Existing Stone

Send us a sample piece from your existing project, a historic building, or a previous supplier. We will produce a keystone or voussoir unit mockup for approval before committing to the full arch production run. Standard turnaround for custom color: 3–4 weeks.

Request Color Match

Cost Analysis

Cast Stone vs. Alternative Keystone & Arch Materials

Cost comparison for architectural keystones and arch units across typical commercial and residential project profiles. Per-piece pricing for keystones; full arch opening (single arch set) for complete arch comparison.

Material	Keystone (per piece)	Arch Opening Set	Lifecycle	Freeze-Thaw	Maintenance
Cast Stone (Mesa Precast)	$200–800	$1,500–6,000	50+ years	300+ cycles	None required
Natural Stone (Limestone/Granite)	$500–2,000	$4,000–15,000	100+ years	Excellent	Minimal
Precast Concrete	$150–500	$1,200–4,500	40–50 years	200–300 cycles	Low maintenance
Synthetic / GFRC	$300–1,200	$2,000–8,000	50+ years	300+ cycles	Minimal
Foam / EPS Keystones	$20–80	$150–600	10–15 years	Not rated	Repaint every 3–5 yrs
Cast Polymer / Resin	$50–250	$400–2,000	20–30 years	Not freeze-thaw rated	UV degradation risk

Installed cost estimates for US market, 2025. Arch opening set pricing includes all voussoir units, keystone, springing stones, and impost blocks. Cast stone typically represents 40–60% savings vs. natural stone with comparable aesthetics and 50+ year durability.

Material Selection Guide

Precast Concrete vs. Cast Stone vs. GFRC

Three material options for keystone and arch applications. Cast stone is preferred for classical detail and voussoir geometry; GFRC for large-span arches where dead load limits apply.

Criteria	Precast Concrete	Cast Stone (ASTM C1364)	GFRC (ASTM C947)
Compressive Strength	5,000 psi min.	6,500 psi min.	4,000 psi face mix
Water Absorption	<8% (ASTM C642)	<6% (ASTM C642)	<10% face mix
Freeze-Thaw	300 cycles (ASTM C666)	300 cycles (ASTM C666)	300 cycles (ASTM C666)
Weight	130–145 pcf	130–145 pcf	18–25 pcf (75–80% lighter)
Arch Profile Detail	Basic voussoir shapes	Full classical: projecting keystones, carved detail	Large-span thin arches
Advantages	Cost-effective; structural	Classical detail; color-matched sets	Large spans; weight reduction
Limitations	Limited decorative profile	Heavier than GFRC	Higher cost for small runs
CSI Reference	Section 03 41 00	Section 04 72 00	Section 03 49 00

✓ All materials meet ASTM C666 freeze-thaw (300 cycles). Tolerances: ±1/8" cross-section, ±1/4" arch radius per ASTM C1364. Stainless steel anchors required. Sealant per Section 07 92 00.

Need exact pricing for your project?

Our free estimator gives you material pricing in seconds. For custom configurations, our team responds within 1 business day.

Try Free Estimator →

Specifier Resources

Downloadable Specification Language

Ready-to-use CSI MasterFormat specification language for Section 04 72 00. Copy directly into your project specifications. Three formats available for different spec-writing workflows.

Section 04 72 00 — Architectural Cast Stone: Keystones & Arches

SECTION 04 72 00 - ARCHITECTURAL CAST STONE PART 1 - GENERAL 1.1 SUMMARY A. Section Includes: Precast architectural cast stone keystone units, voussoir arch units, springing stones, impost blocks, and complete arch sets for door, window, and facade openings. B. Related Sections: 1. Section 04 20 00 - Unit Masonry 2. Section 07 92 00 - Joint Sealants 3. Section 05 50 00 - Metal Fabrications (arch centering, lintels) 1.2 REFERENCES A. ASTM C1364 - Standard Specification for Architectural Cast Stone. B. ASTM C666 - Standard Test Method for Resistance of Concrete to Rapid Freezing and Thawing. C. ASTM C947 - Standard Test Method for Flexural Properties of Thin-Section Glass-Fiber-Reinforced Concrete. D. ASTM C1194 - Standard Test Method for Compressive Strength of Architectural Cast Stone. E. PCI MNL-128 - Recommended Practice for GFRC (for GFRC units). 1.3 SUBMITTALS A. Product Data: Manufacturer's data sheets, mix designs, test reports. B. Samples: Two keystone units minimum per profile and finish color. C. Shop Drawings: Elevation layout with arch geometry, voussoir numbering schedule, unit dimensions, joint widths, anchor details, bearing support design. D. Test Reports: ASTM C666 freeze-thaw; ASTM C1194 compressive strength. E. Mock-Up: One full arch set per major arch type for review and approval prior to full production (institutional and commercial projects). 1.4 QUALITY ASSURANCE A. Manufacturer: Minimum 10 years experience manufacturing architectural cast stone arches per ASTM C1364. B. Compressive Strength: Minimum 6,500 psi at 28 days. C. Absorption: Maximum 6% per ASTM C642. D. Freeze-Thaw: 300+ cycles per ASTM C666, less than 0.10% mass loss. PART 2 - PRODUCTS 2.1 CAST STONE KEYSTONES AND ARCH UNITS A. Material: Architectural cast stone per ASTM C1364. B. Mix Design: Portland cement Type I/II, limestone/marble aggregate, integral pigments, mineral admixtures. No fly ash in exposed faces. C. Units: Voussoirs, keystone, springing stones, impost blocks per approved shop drawings. All units in each arch set are fabricated from the same batch to ensure color consistency. D. Keystone Projection: As shown on drawings; projecting keystones require stainless steel or hot-dip galvanized anchor pins. E. Arch Geometry: [Semi-circular / Segmental / Tudor / Elliptical / Jack / Moorish] as shown on architectural drawings. F. Color: [Limestone / Sandstone / Travertine / Custom Match] as selected by Architect. G. Finish: [Smooth / Light Sandblast / Medium Sandblast] as specified. 2.2 GFRC ARCH UNITS (Where Scheduled) A. Material: Glass fiber reinforced concrete per ASTM C947 and PCI MNL-128. B. Glass Fiber Content: Minimum 5% by weight, alkali-resistant. C. Use for arch spans over 10 feet or where dead load on supporting structure requires weight reduction. PART 3 - EXECUTION 3.1 INSTALLATION A. Install per manufacturer's written instructions and shop drawings. B. Set arch units using centering support. Do not remove centering until mortar has achieved design strength. C. Set each unit in full-coverage mortar bed, Type N or S. D. Keystones: Set last; verify bearing on both adjacent voussoirs before final seating. Anchor projecting keystones per shop drawings. E. Joints: 3/8-inch minimum; fill solidly with mortar; tool to match adjacent masonry joint profile. F. Sealant at crown joint: Backer rod and paintable polyurethane sealant per Section 07 92 00. 3.2 TOLERANCES A. Variation in cross-section: +/-1/8 inch. B. Variation in arch radius: +/-1/4 inch. C. Variation in keystone projection: +/-1/8 inch. END OF SECTION 04 72 00

COLUMN_A,COLUMN_B,COLUMN_C,COLUMN_D Section,04 72 00,Architectural Cast Stone: Keystones & Arches, CSI Format,MasterFormat 2024,, Part,Topic,Requirement,Reference 1.1,Scope,Keystones / voussoirs / springing stones / impost blocks / arch sets, 1.2,References,ASTM C1364 (Cast Stone),, 1.2,References,ASTM C666 (Freeze-Thaw),, 1.2,References,ASTM C947 (GFRC Flexural),, 1.2,References,ASTM C1194 (Compressive Strength),, 1.3,Submittals,Product data; Samples; Shop drawings; Test reports; Mock-up,, 1.4,QA,Fabricator 10+ years experience; Independent lab testing,ASTM C1364 1.4,QA,Compressive strength 6500 psi minimum,, 1.4,QA,Freeze-thaw 300+ cycles less than 0.10% mass loss,ASTM C666 2.1,Cast Stone,Material per ASTM C1364,, 2.1,Arch Geometry,Semi-circular / Segmental / Tudor / Elliptical / Jack / Moorish,, 2.1,Finishes,Smooth / Light Sandblast / Medium Sandblast / Custom Match,, 2.2,GFRC Units,Per ASTM C947 and PCI MNL-128 for spans over 10 feet,, Mark,Unit Type,Profile,Size,Finish,Qty,Opening Location KS-1,Keystone,Projecting scrolled head,12"H x 10"W x 8" proj,Limestone,[qty],Main entry arches KS-2,Keystone,Plain raised block,8"H x 7"W x 4" proj,Limestone,[qty],Window openings VS-1,Voussoir set,Semi-circular 6'-0" span,Per shop drawing,Limestone,[qty],Entry arch A VS-2,Voussoir set,Segmental 8'-0" span,Per shop drawing,Sandstone,[qty],Entry arch B SP-1,Springing stone,Per arch type,,Limestone,[qty],Per arch set IB-1,Impost block,Molded profile,,Limestone,[qty],Per arch set [ Additional rows for each arch opening - edit to match project ] END OF SECTION,,,

KEYSTONES AND ARCHES — CAST STONE SPECIFICATION MATERIAL: Architectural cast stone per ASTM C1364 STANDARD: ASTM C666 freeze-thaw resistance; ASTM C947 (GFRC where scheduled) CSI SECTION: 04 72 00 PHYSICAL REQUIREMENTS: - Compressive Strength: 6,500 psi minimum at 28 days - Water Absorption: 6% maximum (ASTM C642) - Freeze-Thaw: 300+ cycles, <0.10% mass loss (ASTM C666) - Density: 130–145 pcf ARCH GEOMETRIES AVAILABLE: - Semi-circular (Roman arch) - Segmental (shallow arc) - Tudor (pointed two-center) - Elliptical - Flat / Jack arch with projecting keystone - Moorish / Horseshoe - Custom radii per project drawings UNIT TYPES IN ARCH SET: - Voussoirs: wedge-shaped units forming arch ring - Keystone: crown unit; plain or decoratively carved - Springing stones: first voussoir unit bearing on impost - Impost blocks: springer bearing support units - Skewbacks: inclined bearing unit at spring line STANDARD FINISHES: - Smooth (SM-01) — fine-form smooth surface - Light Sandblast (LS-02) — matches quarried Indiana limestone - Medium Sandblast (MS-03) — natural stone texture - Custom Match (CM-04) — color/texture to sample or specification INSTALLATION NOTES: - Set arch units on centering; do not remove until mortar reaches design strength - Set in Type N or S mortar, full-coverage bearing on all bed joints - Keystones set last; anchor projecting keystones per shop drawings - Crown joint: backer rod + paintable polyurethane sealant - Joints 3/8" minimum; slope arch faces for drainage MANUFACTURER: Mesa Precast Contact: Jess Mason, 480-600-6776 COMPLETE SPECIFICATION: Full 3-part CSI format with all submittals, QA requirements, and execution details available at archstoneglobal.polsia.app/specs-keystones-arches

↓ Download CSI Specification (PDF)

PDF contains Mesa Precast MasterFormat 04 72 00 specification with ASTM C1364, C150, C33, C642, C666, C947, PCI MNL-117 and MNL-128 references. Includes material selection guide. Contact Jess Mason at 480-600-6776 for Word (.docx) format.
